  Airplanes - Normandy 1944

Choose the model
A-20  --  Albemarle  --  B-17  --  B-25  --  B-26  --  Bf109  --  C-47  --  CG-4A  --  Fw190  --  Halifax  --  Horsa  --  Ju88  --  Lancaster  --  Mosquito  --  P-38  --  P-47  --  P-51  --  Spitfire  --  Stirling  --  Tempest  --  Typhoon  --

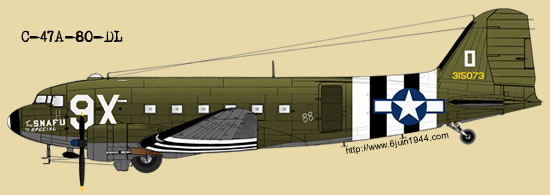

C-47A-80-DL #43-15073 'The Snafu Special' du 95th Troop Carrier Squadron - 440th Troop Carrier Group. Pilot : James P. Harper.

DOUGLAS C-47 SKYTRAIN
Type : Military transport and glider tug

Powerplant : Two R-1830-92 1,200 hp Pratt & Whitney Twin Wasp 14 cylinder dual row radial, air cooled

Characteristics :
Wingspan: 95 ft
Length: 63 ft 9 in
Height: 16 ft 11 1/8 in.
Wing area: 988.9 sq ft
Empty weight: 17,865 lbs

Performance :
Range: 1,600 miles
Cruise speed: 160 mph
Max speed: 230 mph
Ceiling: 24,000 ft

Load : Crew of 3 + 28 passengers, 8,600 lb
