  Airplanes - Normandy 1944

Choose the model
A-20  --  Albemarle  --  B-17  --  B-25  --  B-26  --  Bf109  --  C-47  --  CG-4A  --  Fw190  --  Halifax  --  Horsa  --  Ju88  --  Lancaster  --  Mosquito  --  P-38  --  P-47  --  P-51  --  Spitfire  --  Stirling  --  Tempest  --  Typhoon  --

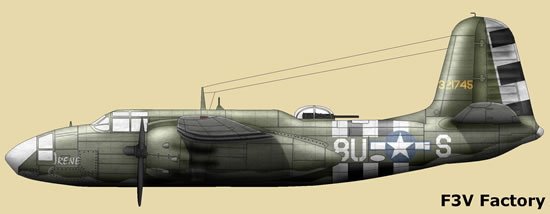

Profil réalisé par Cédric Chevalier - F3V Factory - Tous droits réservés

A-20 Boston #43-21745 'Irene' du 646th Bomb Squadron - 410th Bomb Group.

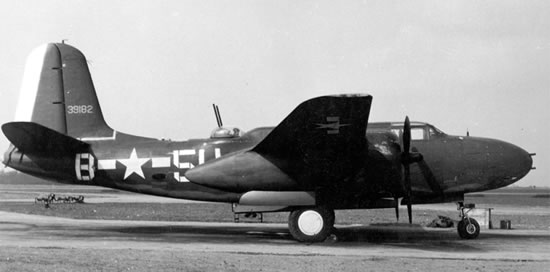

DOUGLAS A-20 HAVOC
Type : Three-seat light bomber

Powerplant : Two 1,600-hp Wright R-2600-23 Cyclone 14 radial piston engines

Characteristics :
Wingspan: 61 ft 4 in
Length: 48 ft 0 in
Height: 17 ft 7 in
Wing area: 465 sq ft
Empty weight: 15,984 lb
Maximum take-off weight: 27,200 lb

Performance :
Maximum speed: 317 mph at 10,000 ft
Cruising speed: 230 mph
Service ceiling: 25,000 ft
Range: with 725 US gallons of fuel and 2,000 lb of bombs 1,025 miles

Armament : Six .50-in forward-firing machine-guns, Two .50-in guns in power-operated dorsal turret and one .50-in gun firing through ventral tunnel, plus up to 4,000 lb of bombs
