  Airplanes - Normandy 1944

Choose the model
A-20  --  Albemarle  --  B-17  --  B-25  --  B-26  --  Bf109  --  C-47  --  CG-4A  --  Fw190  --  Halifax  --  Horsa  --  Ju88  --  Lancaster  --  Mosquito  --  P-38  --  P-47  --  P-51  --  Spitfire  --  Stirling  --  Tempest  --  Typhoon  --

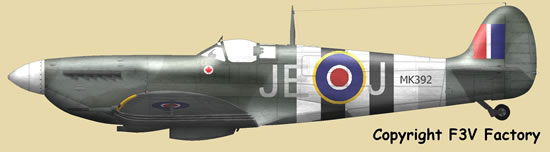

Profil réalisé par Cédric Chevalier - F3V Factory - Tous droits réservés

Supermarine Spitfire LF IX - MK392/JE-J, Wg. Cdr. James Edgar "Johnnie" Johnson, OC No. 144 Wing, 1944.

SUPERMARINE SPITFIRE Mk IX
Type : Single-seat interceptor fighter / fighter-bomber

Powerplant : One V-12 Rolls-Royce Merlin 61, 1,515-hp or Merlin 63, 1,712-hp

Characteristics :
Wingspan: 36 ft 10 in (standard) - 32 ft 2 in (clipped)
Lenght: 31 ft 3½ in
Height: 11 ft 9 in
Wing area: 242 sq ft
Empty weight: 5,610 lb
Maximum take-off weight: 7,500 lb

Performance :
Maximum speed: 408 mph at 25,000 ft
Service ceiling: 4,000 ft
Range: 434 miles w/o drop tank

Armament : Two Hispano 20mm cannon and either four .303 machine guns or two .50 machine guns; 1,000 lb of bombs (500 centerline, 250 each wing)
