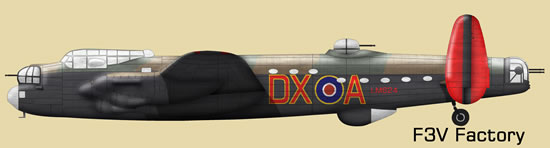

Profil réalisé par Cédric Chevalier - F3V Factory - Tous droits réservés

Avro Lancaster B Mk III du 57 Squadron - Bomber Command. Perdu au combat le 6 Novembre 1944

AVRO LANCASTER Mk III
Type : Seven-seat heavy bomber

Powerplant : Four 1,460-hp Rolls-Royce Merlin 28 inline piston engines

Characteristics :
Wingspan: 102 ft 0 in
Length: 69 ft 10 in
Height: 20 ft 4 in
Wing area: 1,300 sq ft
Empty weight: 41,000 lb
Maximum take-off weight: 72,000 lb

Performance :
Maximum speed: 281 mph at 11,000 ft
Cruising speed: 227 mph at 20,000 ft
Service ceiling: 24,500 ft
Range: 2,530 miles with 7,000 lb bomb load

Armament : Eight .303-in machine-guns (two each in nose and dorsal turrets, and four in tail turret), plus bomb load comprising one 12,000-lb bomb or up to 14,000 lb of smaller bombs
