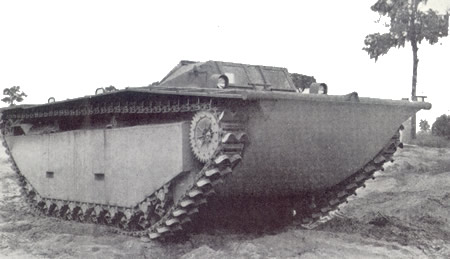

LANDING VEHICLE, TRACKED (MARK 2)

Operational use: Personnel and cargo carrier designed for landing operations over coral reefs, and other obstacles.

Capacity: 6,500 lbs. (normal), or 24 fully equipped men.

Endurance: 150 miles (land), 75 miles (water).

Speed: 25 m.p.h. (land); 5.4 kts (water).

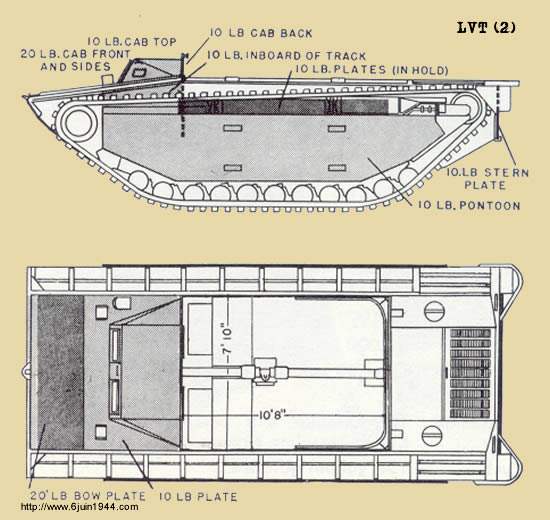

Armor: Portable plating shown by diagram.

Dimensions: 26'1'' o.a. x 10'8'' x 8'1" height o.a.

Weight: 25,200 lbs. (unloaded).

Armament: Track rails for 1-.30 and 1-.50 cal M.G.

Crew: 3.

Propulsion: Continental radial air-cooled 7-cylinder 200 hp. @ 1,800 r.p.m. gasoline engine.

Fuel: 110 gals. gasoline carried.  Comsumption - 13 gals. an hour.

Source : ONI 226 - ALLIED LANDING CRAFT AND SHIPS - NAVY DEPARTMENT
